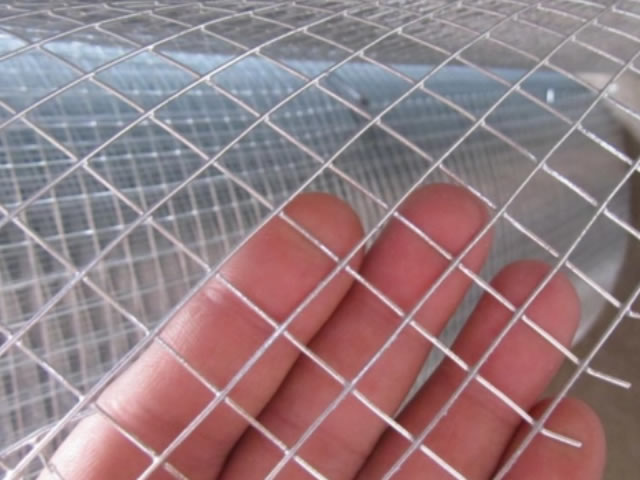

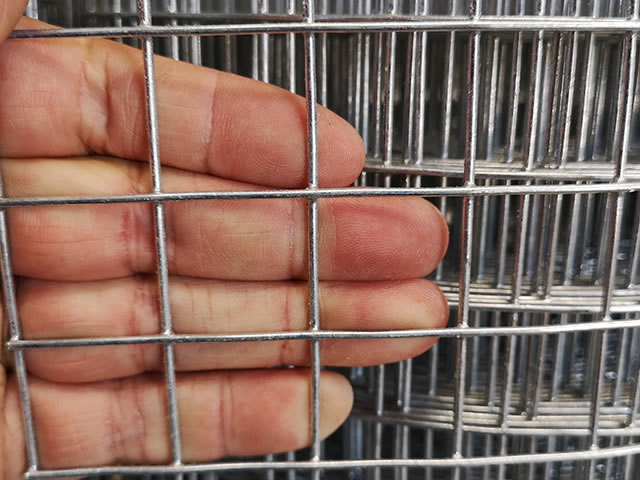

We can produce electro galvanized welded wire mesh of different specifications. Electro galvanized welded wire mesh as the most economic welded wire mesh finds popular applications in various fields.

Electro galvanized welded wire mesh is made from choice plain steel wire and stainless steel wire throught the processing of galvanized then welded or welded before galvanized. Galvanized welded wire mesh offers good corrosion-resistance and oxidation-resistance.

Galvanized welded wire mesh is widely used for poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, safety guards on machines, animal and plant pens and shelves, etc.

Specification List of Galvanized Welded Wire Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/4" x 1/4"	6.4mm x 6.4mm	21,22,23,24,25,26,27
2.5/8" x 2.5/8"	7.94mmx7.94mm	20,21,22,23,24,25,26
3/8” x 3/8”	10.6mm x 10.6mm	19,20,21,22,23,24,25
1/2” x 1/2”	12.7mm x 12.7mm	16,17,18,19,20,21,22,23,24,25,26,27
5/8” x 5/8”	15.875mm x 15.875mm	16,17,18,19,20,21,22,23,24,25
3/4” x 3/4”	19.1mm x 19.1mm	14,15,16,17,18,19,20,21,22,23,24,25
6/7” x 6/7”	21.8x21.8mm	14,15,16,17,18,19,20,21,22,23,24,25
1" x 1/2"	25.4mm x 12.7mm	14,15,16,17,18,19,20,21,22,23,24
1" x 1"	25.4mmX25.4mm	14,15,16,17,18,19,20,21,22,23
1-1/4" x 1-1/4"	31.75mmx31.75mm	14,15,16,17,18,19,20,21,22,23
1-1/2" x 1-1/2"	38mm x 38mm	13,14,15,16,17,18,19,20,21
2" x 1"	50.8mm x 25..4mm	13,14,15,16,17,18,19,20,21
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16,17,18,19,20

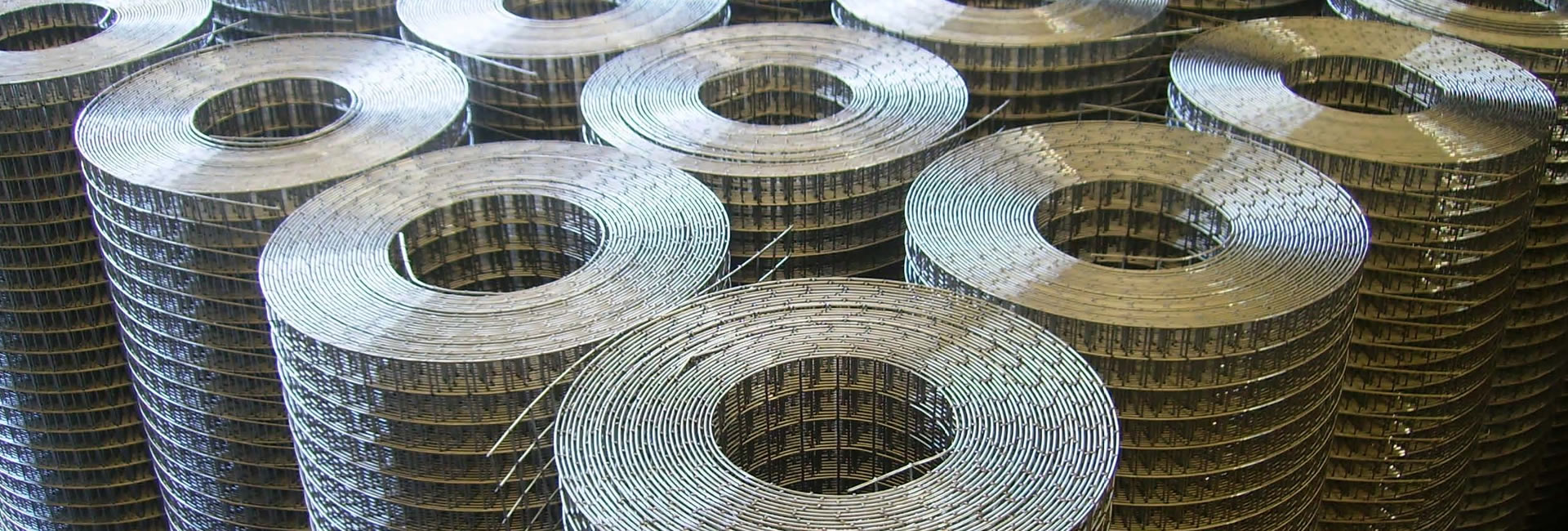

Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.1m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.
