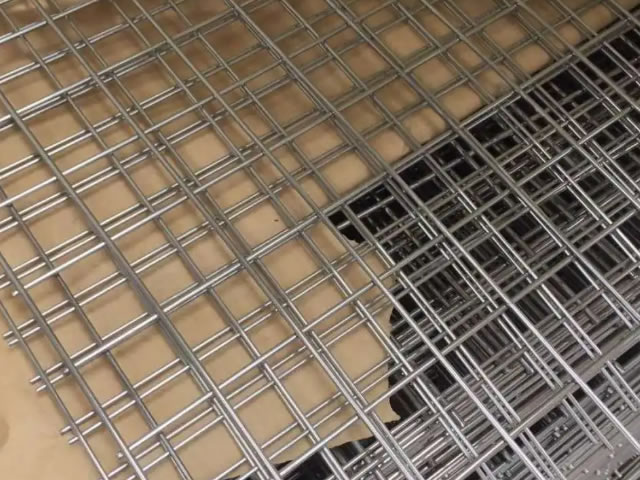

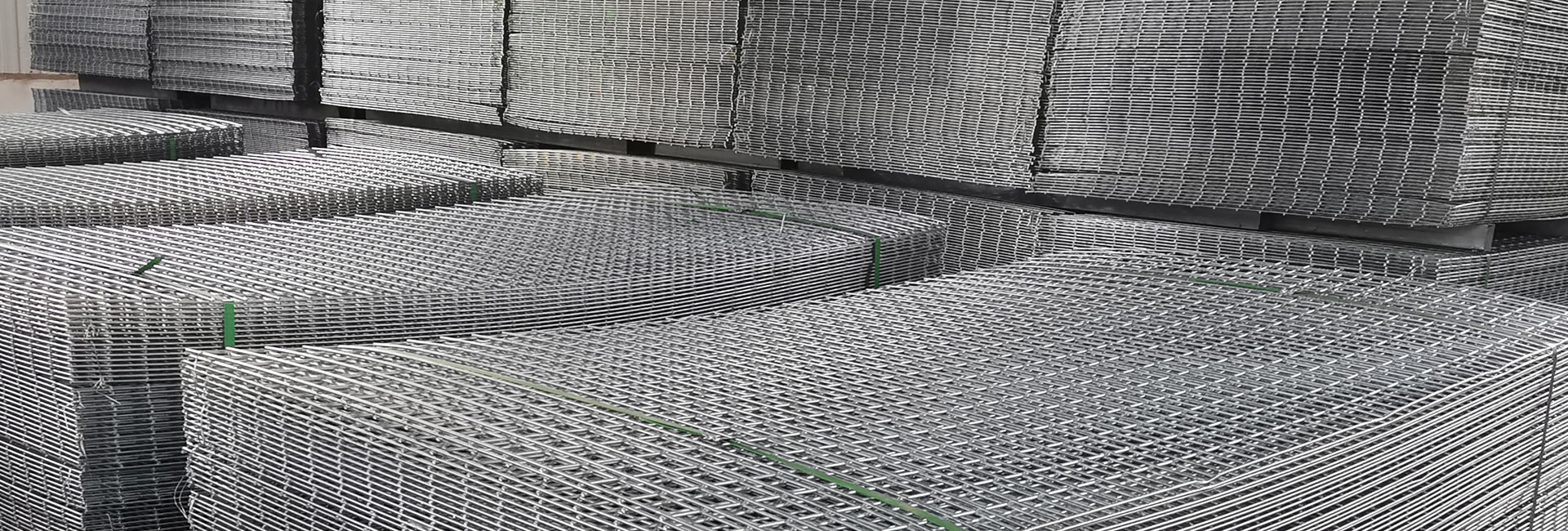

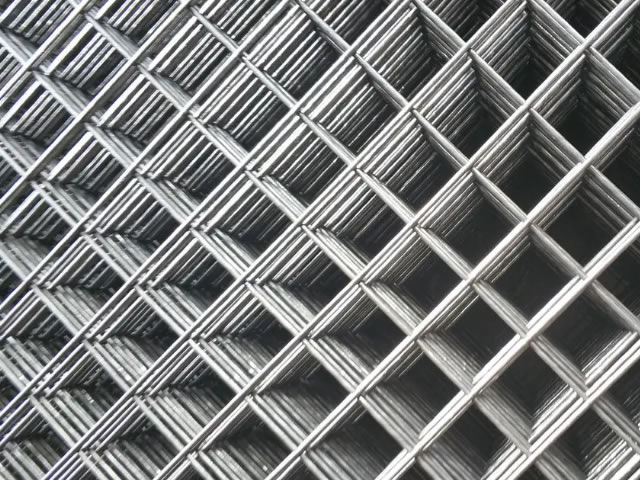

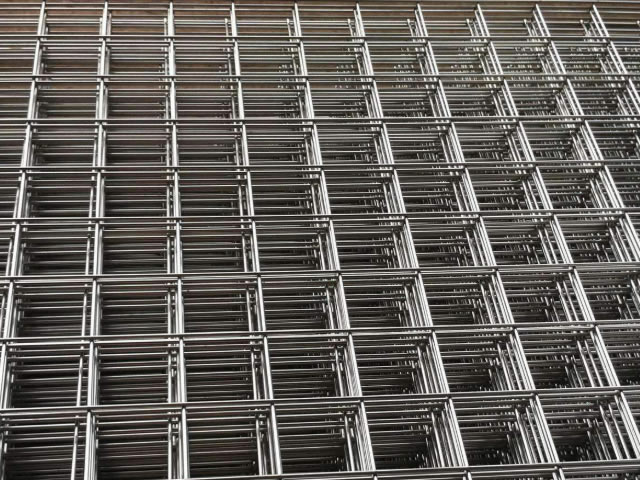

Hot-dipped galvanized welded wire mesh panels or rolls are typically made of plain steel wire and undergo a hot zinc coating process during manufacturing. This type of welded mesh with square openings is well-suited for various applications such as animal cages, wire boxes, grills, partitions, gratings, and machine protection fencing.

Characteristics of Hot-Dipped Galvanized Welded Wire Panels or Rolls:

Flat and uniform surface
Sturdy structure
Good integrity
Excellent corrosion resistance

During the manufacturing process, this type of welded wire mesh can be galvanized before or after welding. Galvanizing the mesh after welding is preferable, especially for the welding corners, as it provides better protection against corrosion in daily use.


Hot-Dipped Galvanized Welded Wire Specifications:

Hot-dip galvanized welded mesh + PVC coating (Green 6005):
Mesh size: 12.7 mm × 12.7 mm
Wire diameter: Internal 0.65 mm, coated 0.90 mm
Roll height: 100 cm
Roll length: 5 m

Hot-dip galvanized mesh (galvanized after welding):
Mesh size: 12.7 mm × 12.7 mm
Wire diameter: 0.65 mm
Roll height: 50 cm
Roll length: 5 m

Hot-dip galvanized mesh (after weaving) + PVC coating (Green 6005):
Mesh size: 25 mm
Wire diameter: Internal 0.80 mm, coated 1.00 mm
Roll height: 50 cm
Roll length: 10 m

Hot-dip galvanized mesh (galvanized after weaving):
Mesh size: 13 mm
Wire diameter: 0.70 mm
Roll height: 50 cm
Roll length: 10 m

Technical Information:
Diameter: 0.65 +/- 0.025 mm
Zinc coating: Minimum 20 g/m2
Tensile strength: 300-450 N/mm2
Elongation: Minimum 15%
Carbon: Maximum 0.10%
Packaging: 150 kg coils with an internal diameter of +/- 270 mm and an external diameter of +/- 450 mm.
