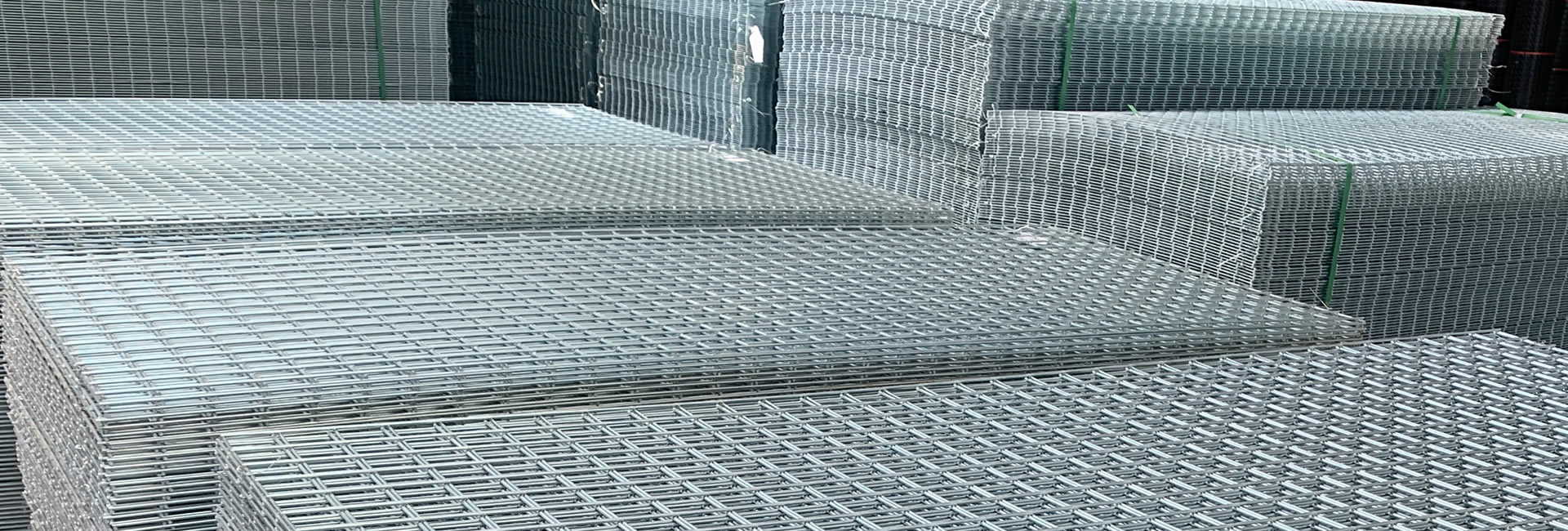

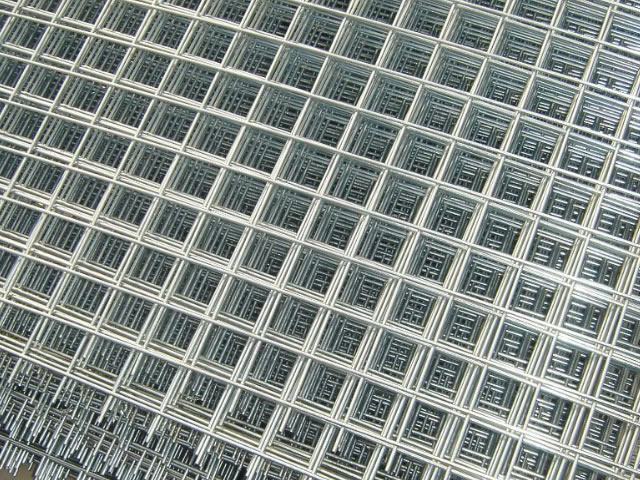

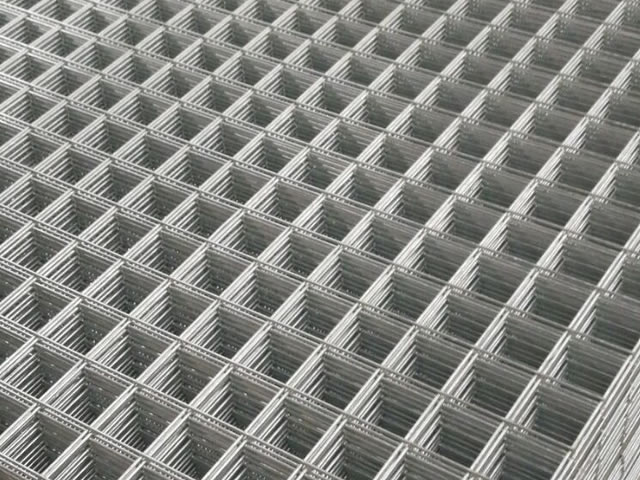

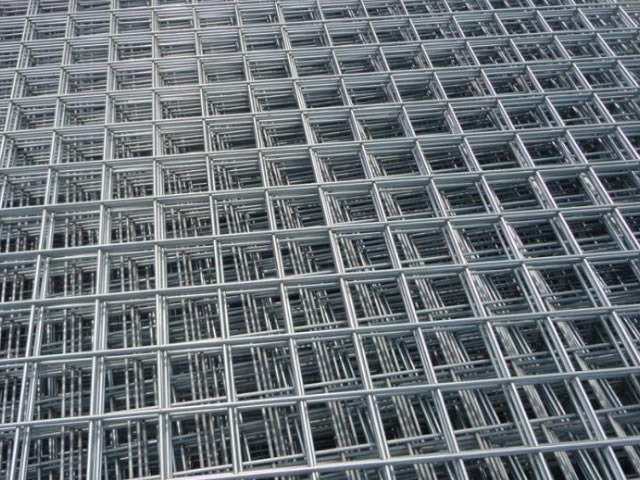

Electro Galvanized Welded Mesh Panel is a high-quality row of low carbon steel wire that is welded using advanced welding technology. The crossover points are welded vertically and horizontally, and the mesh undergoes degreasing and rust removal processes. It is then placed in a special plating bath where it is coated with a layer of zinc through electrolysis reaction or hot-dip method, resulting in a bright and visually appealing surface.

Our welded mesh rolls are available in a wide range of aperture sizes and wire thicknesses, whether you prefer galvanized or PVC coated fencing. They are offered in green and black colors, and our self-color welded mesh rolls are particularly suitable for garden or landscape fencing.

For enhanced corrosion resistance, some specifications are available in stainless steel types 304 and 316. Galvanized weld mesh sheets have a flatter finish, making them easier to use when fixing from one side only.

Specifications:
Material: Carbon steel iron wires
Hole shapes: Square shape
Features: Corrosion resistance, aging resistance, sunshine resistance, and weather resistance.
Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing
Applications: Used in filters, voice boxes, children seats, decorations, gabions, protecting mesh, and more.

wire gauge	hole size	Wire Gauge	hole size
BWG14	25mm	BWG18	12.7mmX25mm
BWG15	25mm	BWG19	25mm
BWG15	50X 25mm	BWG19	12.7mm
BWG16	25mm	BWG19	19mm
BWG16	19mm	BWG19	12.7mmX25mm
BWG16	12.7mm	BWG20	25mm
BWG16	12.7mmx25mm	BWG20	12.7mm
BWG16	50mmX25mm	BWG20	19mm
BWG17	25mm	BWG21	12.7mm
BWG17	12.7mm	BWG21	9.53mm
BWG17	12.7mmX25mm	BWG22	6.53mm
BWG17	19mm	BWG22	12.7mm
BWG17	75mm	BWG23	6.53mm
BWG18	25mm	BWG24	6.53mm
BWG18	12.7mm	BWG14	100mmX50mm
