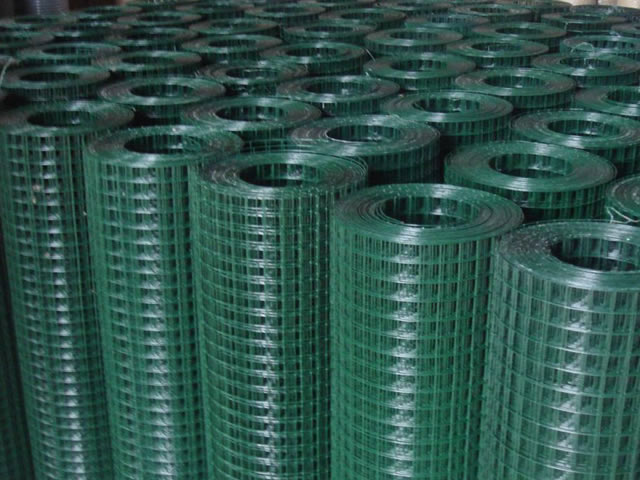

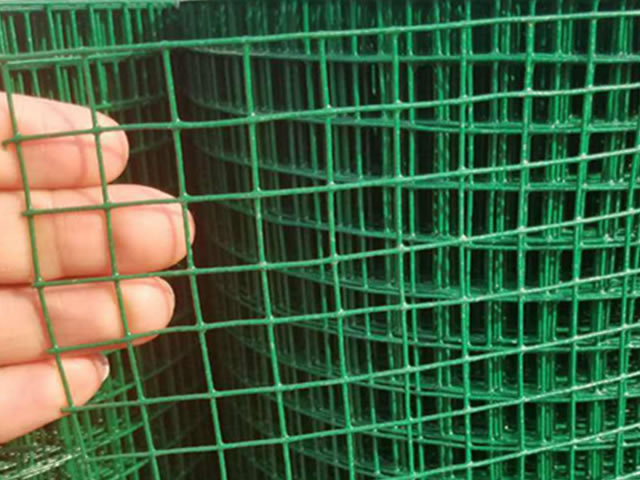

PVC welded wire mesh is welded by black wire, galvanized wire and hot deep galvanized wire. The surface of mesh need sulfur treatment. Then painting PVC powder on the mesh. The characters of this kind mesh are strong adhesion, corrosion protection，acid and alkaline resistance, aging resistance, non-fading, UV resistance, smooth surface and bright.

Application:

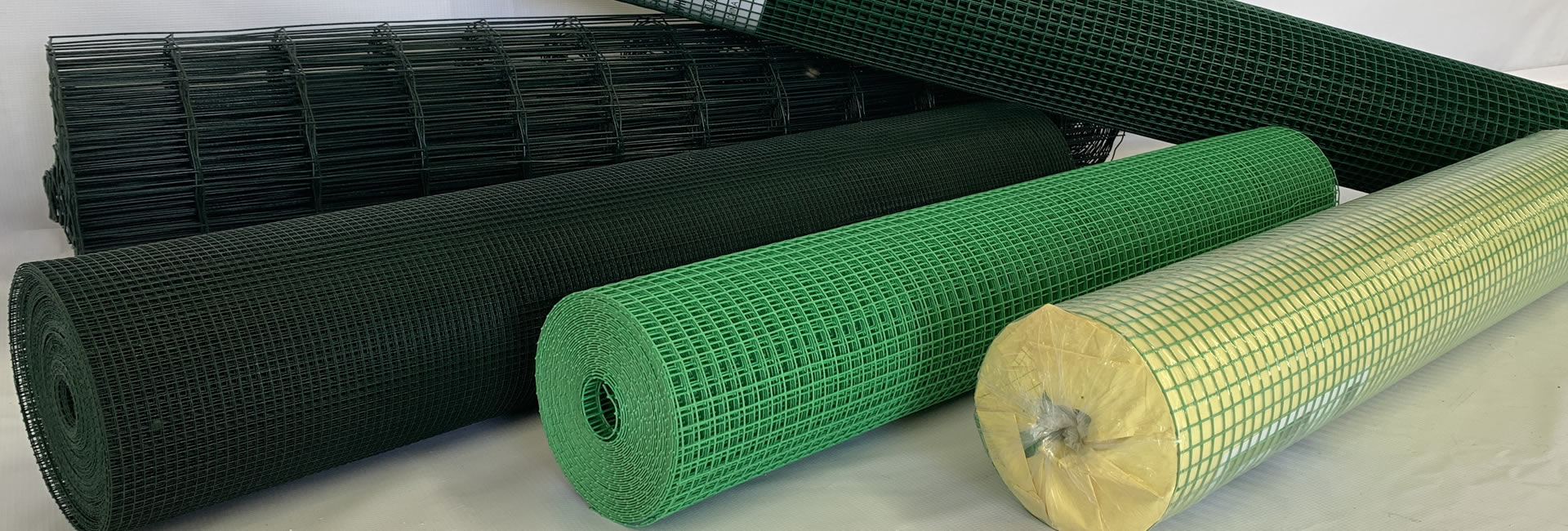

Suitable for fencing houses and properties, companies, gardens recreation areas, parks. All kinds of colors can be coated according to customers' special requirements. PVC coated welded wire mesh is supplied in rolls or panels. Colors can be green, black, white, yellow,red,bule,etc.

Mesh size	Wire Dia. Before coat	Wire Dia. After coat	Width	Length
1/4"x1/4"	0.56 - 0.71	0.90 - 1.05	0.6m - 1.8m	10 - 50m
3/8"x3/8"	0.64 - 1.07	1.00 - 1.52
1/2"x1/2"	0.71 - 1.65	1.10 - 2.20
5/8"x5/8"	0.81 - 1.65	1.22 - 2.30
3/4"x3/4"	0.81 - 1.65	1.24 - 2.40
1" × 1/2"	0.81 - 1.65	1.24 - 2.42
1"x1"	0.81 - 2.11	1.28 - 2.90
1-1/2"x1-1/2"	1.07 - 2.11	1.57 - 2.92
1"x2"	1.47 - 2.11	2.00 - 2.95
2"x2"	1.65 - 2.77	2.20 - 3.61
3"x3"	1.90 - 3.50	2.50 - 4.36
4"x4"	2.20 - 4.00	2.85 - 4.88
